Settings | Capability Metrics
Configuring Alerts
Use the Alerts settings menu to enable or disable capability metrics alerts that are triggered by specification or control limit breaches.
See Working with Tables for tips on sorting, filtering and resizing LinePulse tables.
To enable a Capability Metrics alert
From the Navigation menu, click SYSTEM SETTINGS.
LinePulse displays the Settings menu.
Click Capability Metrics | Alerts.

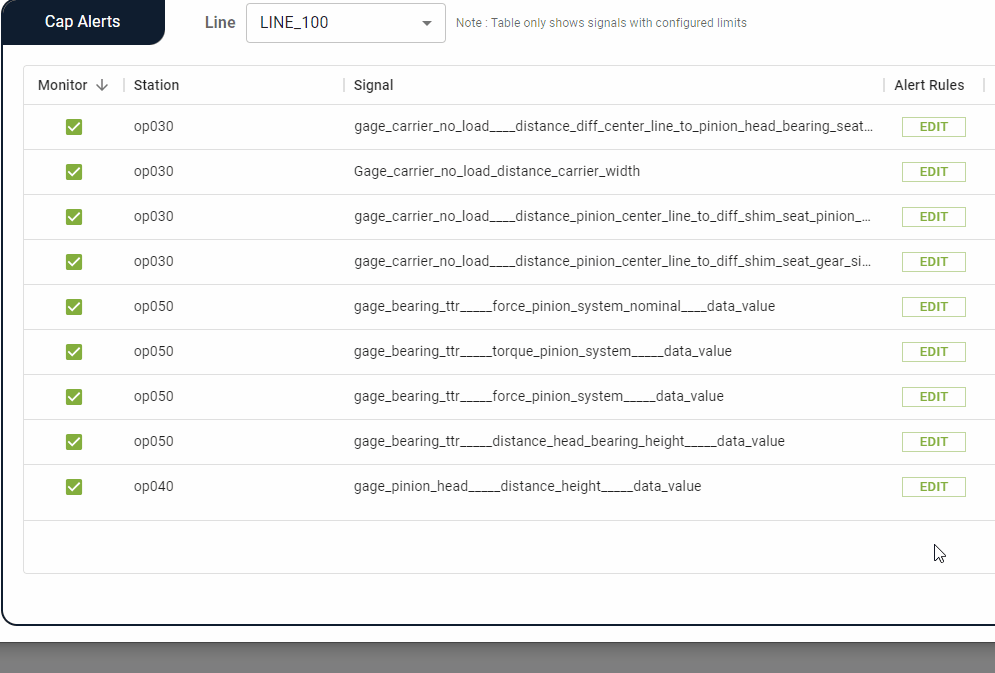

LinePulse displays the SPC Alerts worklist.
LinePulse displays only those signals that have configured limits in the SPC Alerts table.
(If required) Select a Plant.
(If required) Select a Line.
Select the Monitor checkbox for the alert you wish to enable.
LinePulse enables the alert.
To disable a Capability Metrics alert
From the Navigation menu, click SYSTEM SETTINGS.
LinePulse displays the Settings menu.
Click Capability Metrics | Alerts.
LinePulse displays the SPC Alerts worklist.
(If required) Select a Plant.
(If required) Select a Line.
LinePulse displays only those signals that have configured limits in the SPC Alerts table.
Deselect the Monitor checkbox for the alert you wish to disable.
LinePulse disables the alert.
To edit a Capability Metrics monitor's alert rules
You can only edit alert rules for monitors that are enabled.
From the Navigation menu, click SYSTEM SETTINGS.
LinePulse displays the Settings menu.
Click Capability Metrics | Alerts.
LinePulse displays the SPC Alerts worklist.
(If required) Select a Plant.
(If required) Select a Line.
Click EDIT for the alert rules you wish to edit.
LinePulse displays the Cap Alert Rules dialog box.
By default, all rules are disabled and LinePulse will display an alert for any breach.
Click the toggle button to enable any rules you wish to include.
(As required) Enter new values in the enabled rules.
Click SAVE.
LinePulse saves your changes and closes the Cap Alert Rules dialog box.
Configuring Limits
Use the Limits settings menu to configure capability metrics alert specification and control limits.
Once you have created a capability metrics alert, you may wish to enable it, then integrate it into Microsoft Teams™.
See Working with Tables for tips on sorting, filtering and resizing LinePulse tables.
To open the SPC Limits table
From the Navigation menu, click SYSTEM SETTINGS.
LinePulse displays the Settings menu.
Click Capability Metrics | Limits.
LinePulse displays the SPC Limits worklist.
(If required) Select a Plant.
(If required) Select a Line.
To view all models associated with a signal
Click SEE MODELS for the desired Signal.
LinePulse expands the table to display all models associated with the selected signal.
To modify limits for all models within a signal
To view only signals with specified limits, select Show only signals with limits.
Make any required changes to a Signal.
LinePulse updates all Models associated within that Signal.
Click Save Changes.
LinePulse saves your changes.
LinePulse will not override any individually entered Model values.
To modify limits for one or more individual models
To view only signals with specified limits, select Show only signals with limits.
For the Signal that contains the Model you wish to modify, click SEE MODELS.
LinePulse expands the SPC Limits table to display all of the Models associated with that Signal.
Make any required changes to one or more Models.
Click Save Changes.
LinePulse saves your changes.
If you later choose to modify limits for all Models within a signal, LinePulse will not override any previously entered Model values.
